We are now on our 'Mark 6' range of signalling devices which includes the Pro, Mini and Nano hardware variants. This page will help you identify each board and explain the differences between each one. All 3 boards share our core WebWay hardware design. Each has a golden square which houses the processor and onboard memory, all of which are the same.
Pro
The Pro is our largest board and is designed for high risk solutions, such as banks and retailers. It can be configured for Grade 2, 3 and 3+ but is usually used for Grade 4. The Pro can be identified by looking at the Serial Number on the Ethernet port. Serial numbers: 63-, 65- Path configuration: IP / 3G / PSTN Brand: Communicator

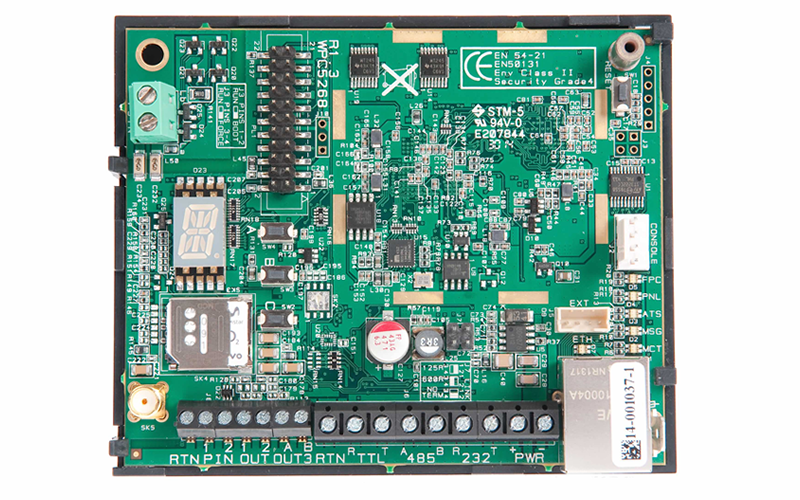

Mini
The Mini is designed for medium risk solutions, such as small businesses. It can be configured for Grade 2, 3, 3+ and Grade 4. The Mini can be identified by looking at the Serial Number on the Ethernet port. Serial numbers: 10-, 14-, 16- Path configuration: IP / 3G / PSTN Brands: Communicator, Smart, Go

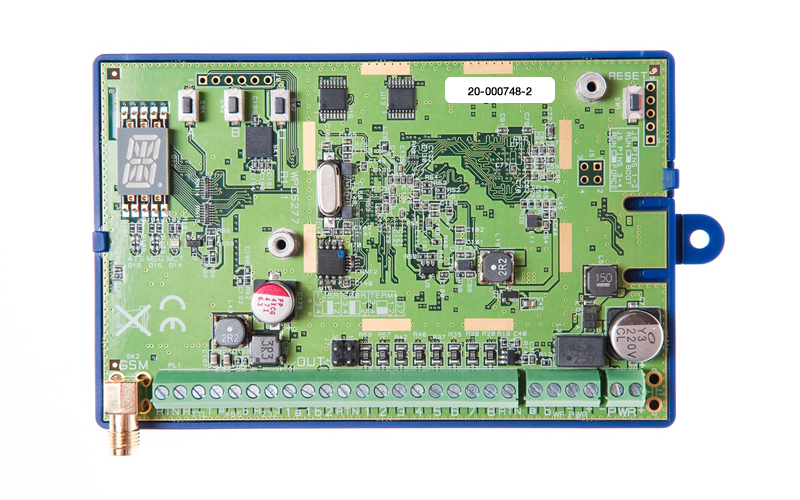

Nano
The Nano is our wire free signalling device for UDL and alarm signalling for home and low risk solutions. It can be purchased as unmonitored and used for UDL over 3G to your panel. Grade 2, 3 or 3+ monitoring to the ARC can also be activated. The Nano can be identified by looking at the Serial Number to the left of the reset button. Serial numbers: 20- Path configuration: 3G Brands: Nano
