Panel Connection - MCM

Manufacturer Honeywell
Model Ademco
Version Vista 12 D
Panel Firmware Range V3.2
MCM Plug on required? MCM version less or equal to V1.05 - Needs SPT version less or equal to V2.06
MCM version greater or equal to V1.06 - Needs SPT version greater or equal to V2.07
MCM or Serial Connection MCM
Panel Profile GalaxyDigi CID
Panel Bus Connection None
Technical Notes No UDL Integration for this panel.

Cable Connection

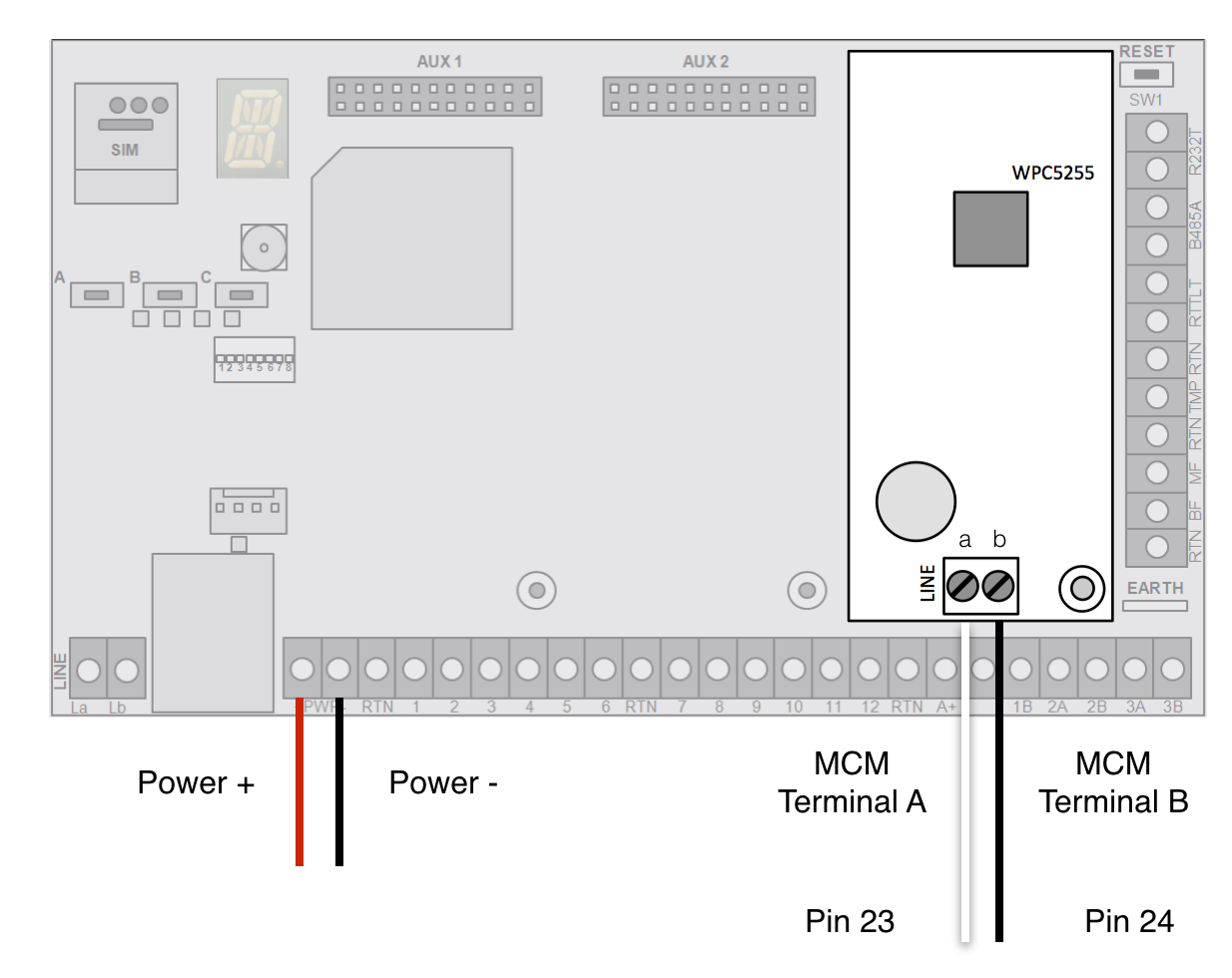

MCM Connection Panel Connection
A Pin 23
B Pin 24

Panel Connection

MCM Connection

MCM Connection

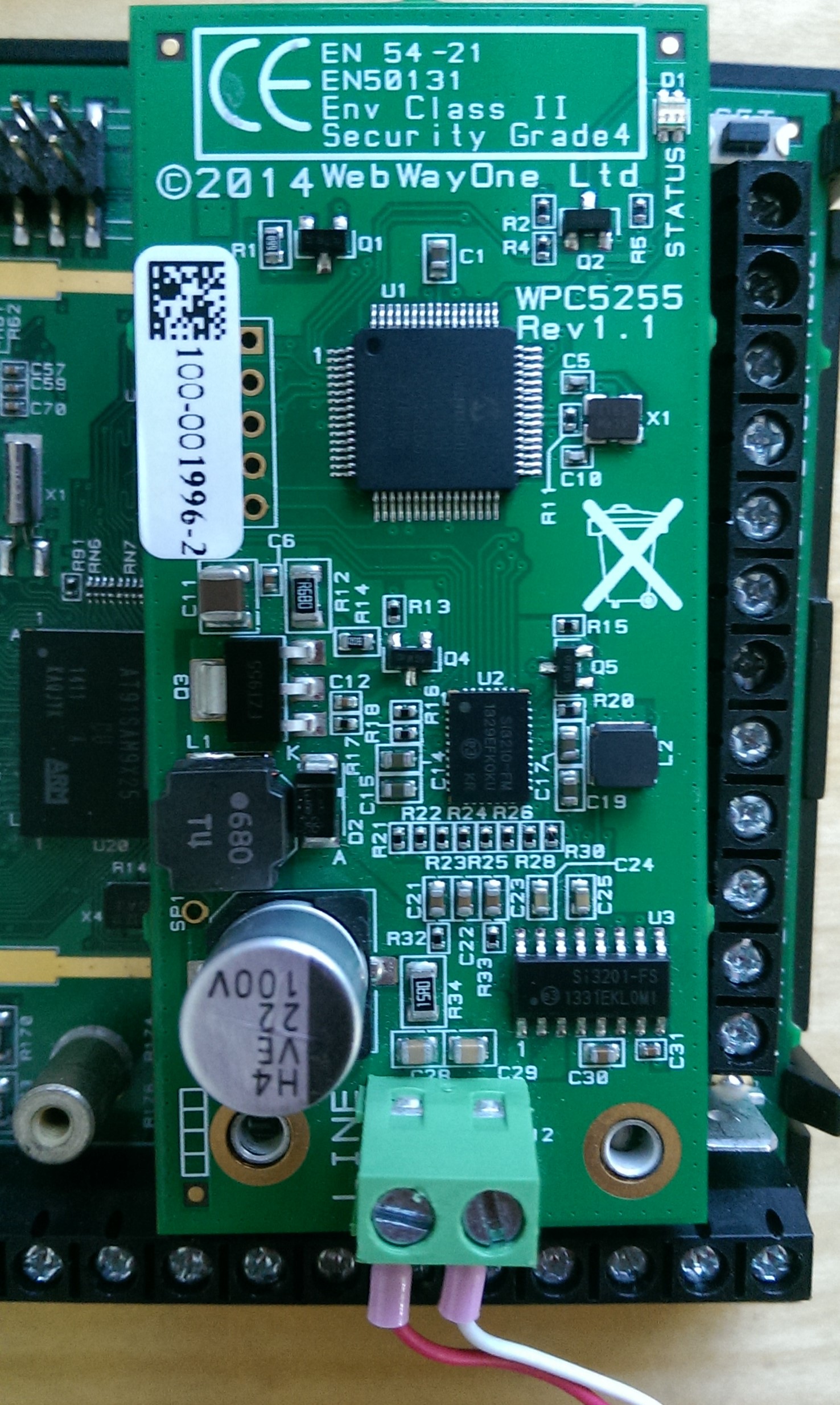

SPT and MCM module

SPT and MCM module

Panel Programming

  • *41 Primary Phone No 01234 567890
  • *43 Primary Subscriber ID (Part 1) Site ID
  • *47 Phone System Dialer attempts Entry 1= Tone Dial (1) & Entry 2= Dialer Attempts (1)
  • *48 Reporting Format 7 = CID (4 Digit)
  • *49 Split/Dual Reporting 0
  • *50 Dialer Delay 0
  • *51 Primary Subscriber ID Site ID
  • *99 Exit menus

Panel Power

  • Negative - Pin 4
  • Positive - Pin 5
