Panel Connection - Serial TTL Interface

Manufacturer GSD (Global Security Devices)
Models GSDi-2-70 - GSDi-7-70 - GSDi-10-70
SPT Firmware Version (minimum) Nano & Pro - V1.13
Panel Firmware (Minimum) V2.12.43
Cable required? YES - 05 5043
MCM, Serial or Peripheral Serial
Panel Profile GSDINTRUDER
Panel Bus Connection TTL
Technical Notes Remote Manager Version - V3.3.2.0 - UDL Software Version V1.0.1.8
Command Centre Panel Profile GSDINTRUDER

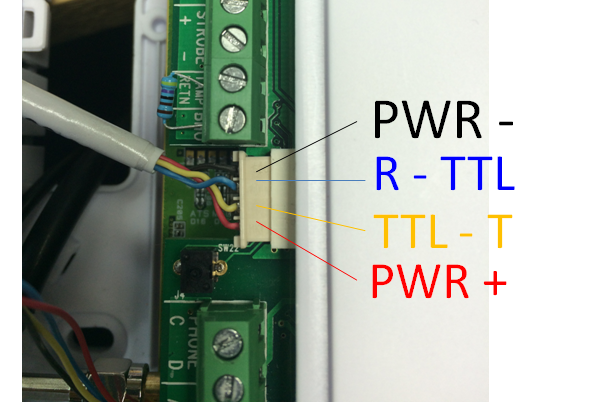

Cable Connection

GSD SPT Colour
Pin Out 1

- Pwr
----
RTN

Black Wire
----
Black Wire

Pin Out 2
----
Pin Out 3

TTL - T
----
R - TTL

Yellow Wire
----
Blue Wire
Pin Out 4 + Pwr Red Wire

Panel Connection

SPT Cable Connection

SPT Cable Connection

Panel Cable Connection

Panel Cable Connection

Recommendations on installing a Nano into a GSD panel

Recommendations on installing a Nano into a GSD panel

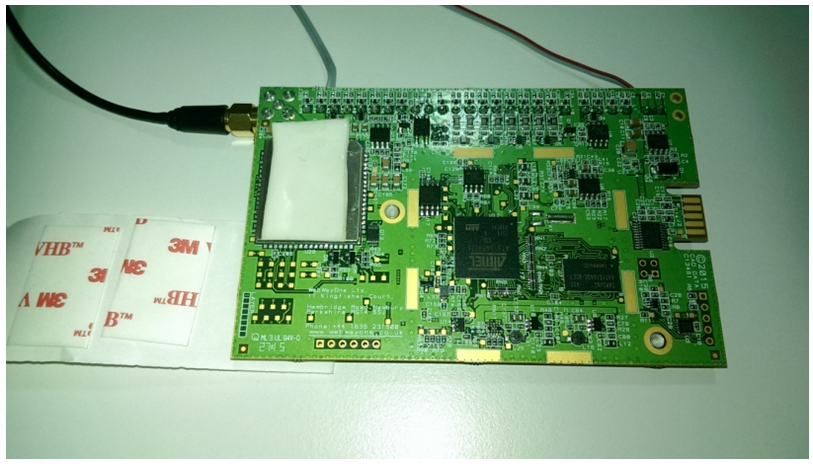

1) Remove Blue Back Plate<p> 2) Place two double sided sticky tapes on the back of the Nano on top of the <b>Gold</b> 3G Cinterion module.

1) Remove Blue Back Plate

2) Place two double sided sticky tapes on the back of the Nano on top of the Gold 3G Cinterion module.

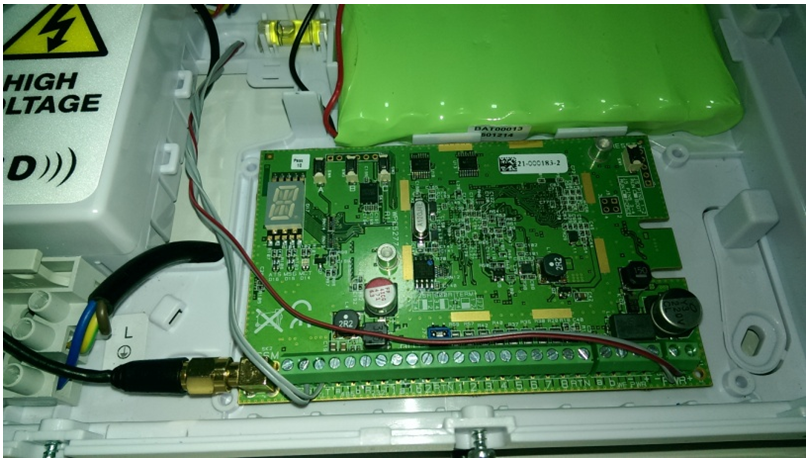

3) Place the Nano in the panel exactly as shown in the photo below and press gently above where sticky pad is underneath so that there is some contact with the base.<p> 4) Placement must be exact so that the Nano does not impede the panels wifi antennas. To do this make sure the top edge of the Nano is flush against battery holder ridges, and the left edge of the Nano is up against both of the panels base screw holes....

3) Place the Nano in the panel exactly as shown in the photo below and press gently above where sticky pad is underneath so that there is some contact with the base.

4) Placement must be exact so that the Nano does not impede the panels wifi antennas. To do this make sure the top edge of the Nano is flush against battery holder ridges, and the left edge of the Nano is up against both of the panels base screw holes....

Panel Programming

  • Panel default Installer code: 6666
  • Panel default User 1 code: 1111

  • Enter engineer mode on the panel using the engineer code

  • 1. Navigate to Installer Menu -> Communications -> Alarm Rx Centres
  • 2. Select Communications -> Alarm Rx Centres -> Al. Rx. Centre 1 and enter its menu
  • 3. Communications -> Alarm Rx Centres -> Al. Rx. Centre 1-> Name: Enter an ARC name (for example: WebWayOne)
  • 4. Communications -> Alarm Rx Centres -> Al. Rx. Centre 1->Account code: Set the account code to the ARC account code
  • 5. Communications -> Alarm Rx Centres -> Al. Rx. Centre 1 -> Format, choose Contact ID or SIA
  • 6. Communications -> Alarm Rx Centres -> Al. Rx. Centre 1 -> Connection 1 -> Phone number enter the # symbol.
  • 7. Communications -> Alarm Rx Centres -> Al. Rx. Centre 1 -> Events-> Alarms : Select the types of alarms you wish to be reported to the ARC
  • 8. Communications -> Alarm Rx Centres -> Al. Rx. Centre 1 -> Events-> other events: Select the other event types you would like to be reported to the ARC.

Hints & Tips

  • A recommended minimal selection of Alarm Events would be: ‘Set and unset’, ‘Inhibits and Overrides’, ‘Tampers’, ‘Mains power faults’ and ‘Battery faults’.
  • Nano's with the Antenna socket in the correct oriantation start with a serial number 21-xxxxxx-2
