Integration Requirements

Manufacturer Advanced
Model Penta Range
SPT Firmware Nano OR Pro - V2.02 (Minimum Version)
Cable required? No - Standard 3 core cable can be used
Panel Profile HERTEK
MCM, Serial or Peripheral Serial
BMS MXP-510 Bus Connection RS232
Technical Notes Please see below

Cable Connection

PANEL MXP-510 MODULE SPT POWER
RS232 - TX RS232 - RX 24V > + PWR
RS232 - RX RS232 - TX 0V > - PWR
RS232 - GND RTN

Module Connection

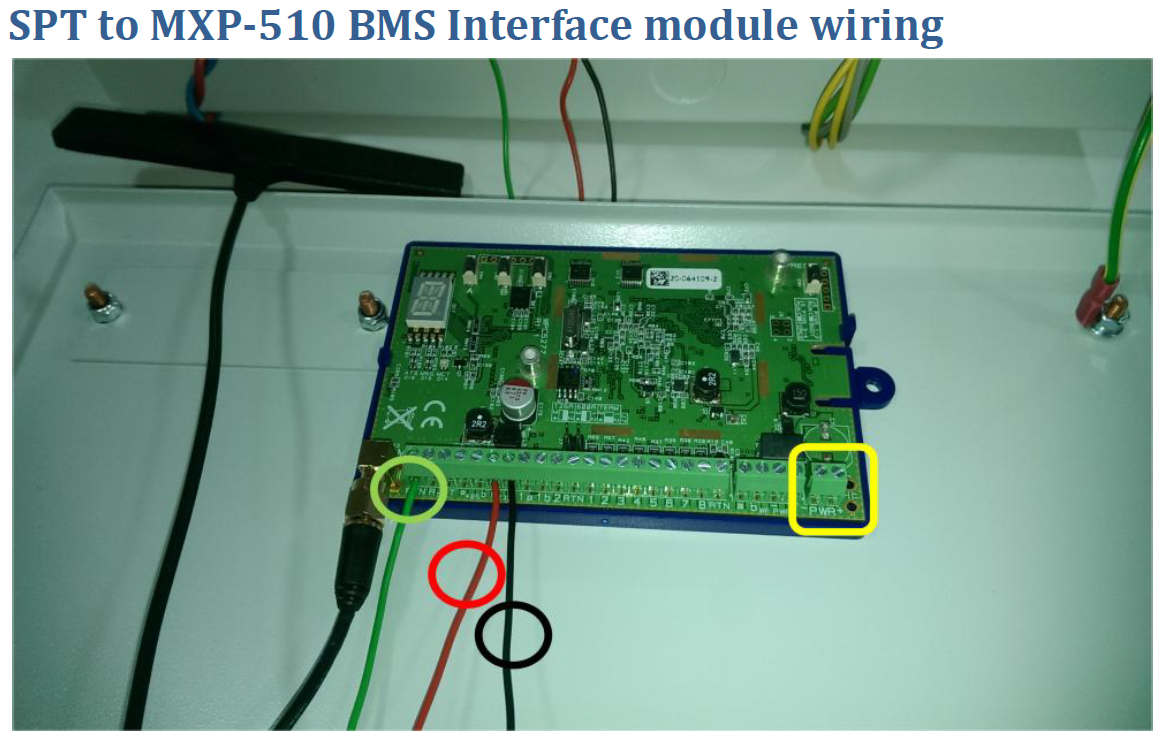

Hertek Fire Panel - SPT Nano Wiring

Hertek Fire Panel - SPT Nano Wiring

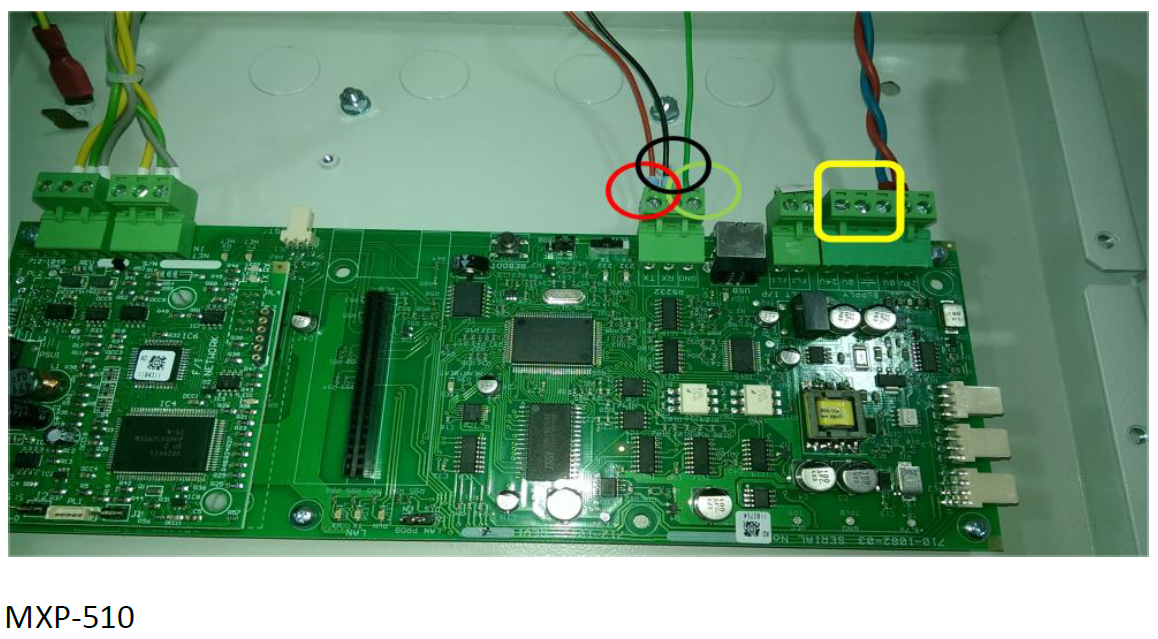

Hertek Fire Panel - MXP-510 Wiring

Hertek Fire Panel - MXP-510 Wiring

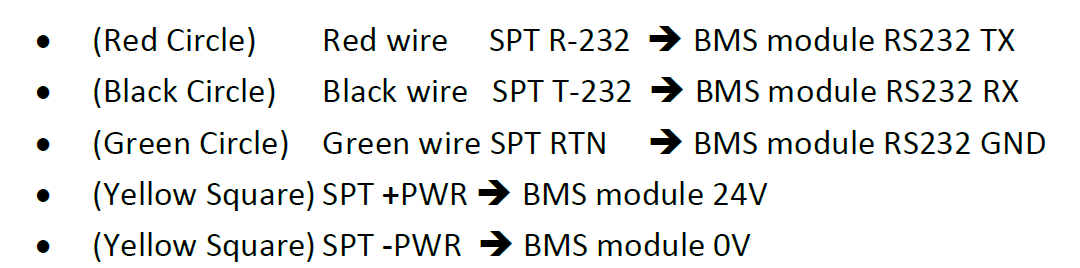

Wiring Layout

Wiring Layout

Panel Support

  • WebWay's Panel Integration with the Heretek Fire Panel is a "Plug 'n' Play" interconnection between the RS232 Terminals of the Webway SPT and the Fire Alarm Panels BMS Inferface Module (MXP-510)

Troubleshooting

  • The SPT Panel Profile can support two languages, UK and NL.
    The HERTEK profile supports NL. Contact WebWayOne if you want to use UK language.

UDL information for this item can be found here:
