Panel Connection - MCM Module

Manufacturer Honeywell
Model Galaxy
Version Galaxy (16)
Panel Firmware Range Min V1.4
MCM Plug on required? MCM version less or equal to V1.05 - Needs SPT version less or equal to V2.06
MCM version greater or equal to V1.06 - Needs SPT version greater or equal to V2.07
MCM or Serial MCM
Panel Profile GALAXY Digi SIA
Panel Bus Connection None
SPT Min Firmware Nano & Pro V2.06
MCM Min Version V1.06

Cable Connection

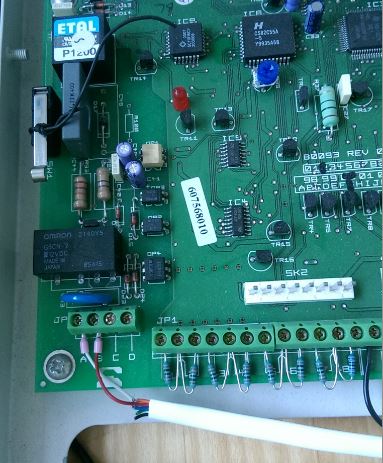

Panel Connection MCM Connection
Phone Line Pin A or B A
Phone Line Pin A or B B

Panel Connection

Panel Connection

MCM Connection

MCM Connection

Panel Programming - Galaxy 16+

  • Enter Engineer Mode
  • Go to Menu 12 Comms 1
  • Menu 01 set Account/Site ID
  • Menu 02 set Tel No.1 to a telephone number (Ex 01666111)
  • Menu 03 clear Tel No.2
  • Menu 04 set Format to SIA0
  • Menu 06 set Dial Type to DTMF Dial
  • Menu 07 set required Triggers
  • Menu 10 set Access to Direct
  • Go back to top menu structure
  • Go to Menu 13 – Comms 2
  • Menu 01 set No. of Rings to 1
  • Exit Engineer Mode

Galaxy Troubleshooting

  • Using a dialler, no modules will be found by the Galaxy Panel.
