Panel Connection - MCM Module

Manufacturer Honeywell
Model Galaxy
Version Dimension, G3, G2, Classic (Usefull for no Telecom/Ethernet Mod)
Panel Firmware Range (Min V1.4)
MCM Plug on required? MCM version less or equal to V1.05 - Needs SPT version less or equal to V2.06
MCM version greater or equal to V1.06 - Needs SPT version greater or equal to V2.07
MCM or Serial Connection to Panel MCM
Panel Profile GALAXY Digi SIA
Panel Bus Connection None
Technical Notes

Cable Connection

SPT Panel
MCM plug-on module - Line a PSTN Line A
MCM plug-on module - Line b PSTN Line B

SPT and MCM module

SPT and MCM module

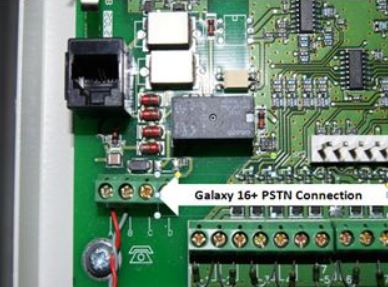

Galaxy Panel Digi Telephone Line

Galaxy Panel Digi Telephone Line

SPT and MCM module

SPT and MCM module

Panel Programming - Digi

  • Enter Engineer Menu 56
  • Select Internal Telecoms (1) or Ext Telecoms (5) *
  • Select format (Option 1)
  • Enter SIA (Option 2)
  • Select SIA level 3
  • Ensure Trigger 10 is on
  • Ensure Trigger 18 is on
  • Select Tel No.1 (option 2)
  • Set phone number 01234 567890
  • Select Account Number (option 3)
  • Enter <_____> (site ID)
  • Go to remote Access (Option 12)
  • Select Access Period
  • Select Mode
  • Escape to return to Engineering mode.
  • Exit Engineer Mode into Day Mode

Galaxy Troubleshooting

  • Using a dialler, no modules will be found by the Galaxy Panel.
