Panel Connection - MCM Module

Manufacturer Honeywell
Model Galaxy
Version Vista 120
SPT Firmware Nano & Pro V2.05 (Minimum Version)
MCM Plug on required? MCM version less or equal to V1.05 - Needs SPT version less or equal to V2.06
MCM version greater or equal to V1.06 - Needs SPT version greater or equal to V2.07
MCM or Serial Connection to Panel MCM
Panel Profile To be updated
Panel Bus Connection None
Technical Notes Please see below

Cable Connection

Panel MCM On SPT
Pin 28 A
Pin 29 B

Images

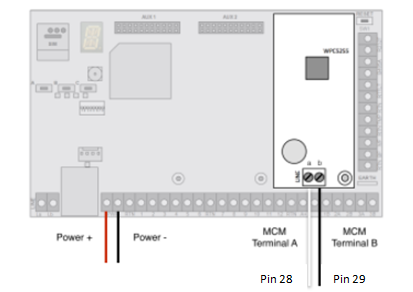

MCM Connection

MCM Connection

MCM on SPT

MCM on SPT

Panel Programming

  • *32 Prim Subs ACCT # Site ID
  • *33 Primary Phone Number 01234567890
  • *45 Primary Format 1 (Contact ID)
  • *51 Dual Reporting 0
  • *52 Std/Expanded Report for Primary 1 Expanded
  • *99 Exits Menus

Additional Information

  • The panel uses separate zone inputs to allow for arming and disarming of the panel by a third party device. Currently, CONXTD does not support controlling two SPT outputs for arm-disarm.

UDL information for this item can be found here:
