Integration Requirements

Manufacturer Panasonic
Model EBL
SPT Firmware Nano & Pro - V1.14 (Minimum Version)
Panel Profile PANASONIC-EBL-RS232
Cable required Yes - See Connection Below
MCM, Serial or Peripheral Serial
Panel Bus Connection RS232
Technical Notes:

Cable Connection

WebWay SPT Panel
DB9 Serial pin 2 SPT R-232
DB9 Serial pin 3 SPT 232-T
DB9 Serial pin 5 SPT RTN

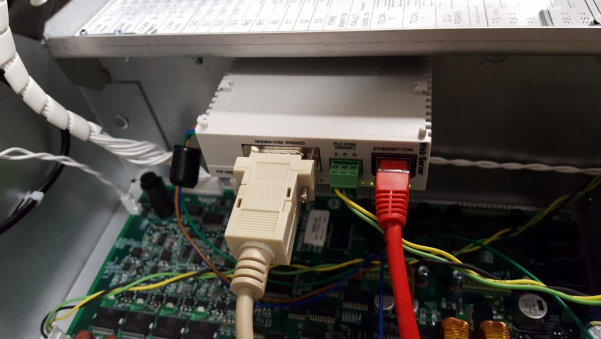

Panel's Communication Module

Panel's Communication Module

Panel Support

  • Should you wish to more information on this Fire Panel integration, please contact your local WebWayOne Sales Representative.

Overview

  • Communication with the panel is via an RS232 cable, connected to the panel’s communications module and it's ‘MODEM COM. (RS232C)’ port using a serial DB9 connector. The panel provides alarm data and is translated, by the SPT, into SIA formatted alarms.

UDL information for this item can be found here:
