Integration Requirements

Manufacturer Advanced
Model Penta Range
SPT Firmware Nano & Pro - V2.02 (Minimum Version)
Cable required? No - Standard 3 core cable can be used
Panel Profile (Hertek badged) HERTEK
MCM, Serial or Peripheral Serial
Panel Bus Connection RS232
Technical Notes Please see below

Cable Connection

PANEL SPT POWER
RS232 - TX RS232 - RX 24V > + PWR
RS232 - RX RS232 - TX 0V > - PWR
RS232 - GND RTN

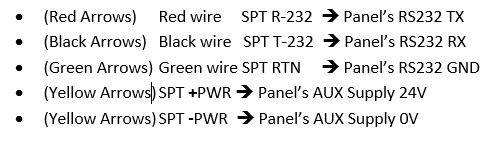

Panel Connection

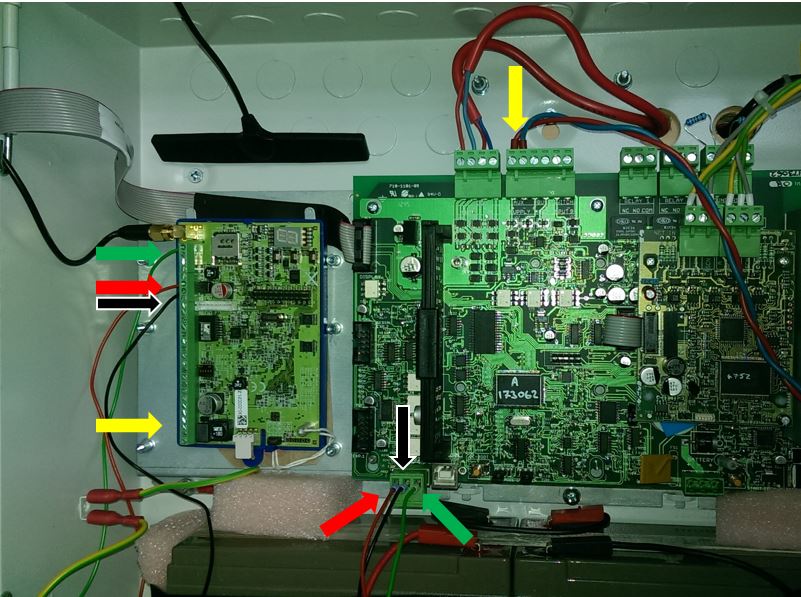

Panel and SPT Nano wiring

Panel and SPT Nano wiring

Wiring links

Wiring links

Panel Support

  • WebWay's Panel Integration with the Heretek Fire Panel is a "Plug 'n' Play" interconnection between the RS232 Terminals of the Webway SPT and the Fire Alarm Panels RS232 Terminals

Troubleshooting

  • The SPT Panel Profile can support two languages, UK and NL.
    The HERTEK profile supports NL. Contact WebWayOne if you want to use UK language.
  • If you are using a none badge Penta panel, please contact WebWayOne for a different Panel Profile.
