Panel Connection - Serial

Manufacturer Cooper Safety
Model Scantronic / Menvier
Version i-on 2 (100, 160, 300, 1000)
Panel Firmware Range
Cable required? No - Can use standard 3 core cable
Serial Connection Serial
Panel Profile ION
Panel Connection TTL
Technical Notes The i-on 2 requires a special serial connector from WebWayOne in order to allow full SIA and upload/download functionality. The serial connector is fitted as shown.

WebWay Cable Wiring: Please complete as follows with standard alarm cable.

WebWay SPT WebWay Serial Board
TTL - T R
TTL - R T
RTN RTN

Images

SPT Pro TTL connections

SPT Pro TTL connections

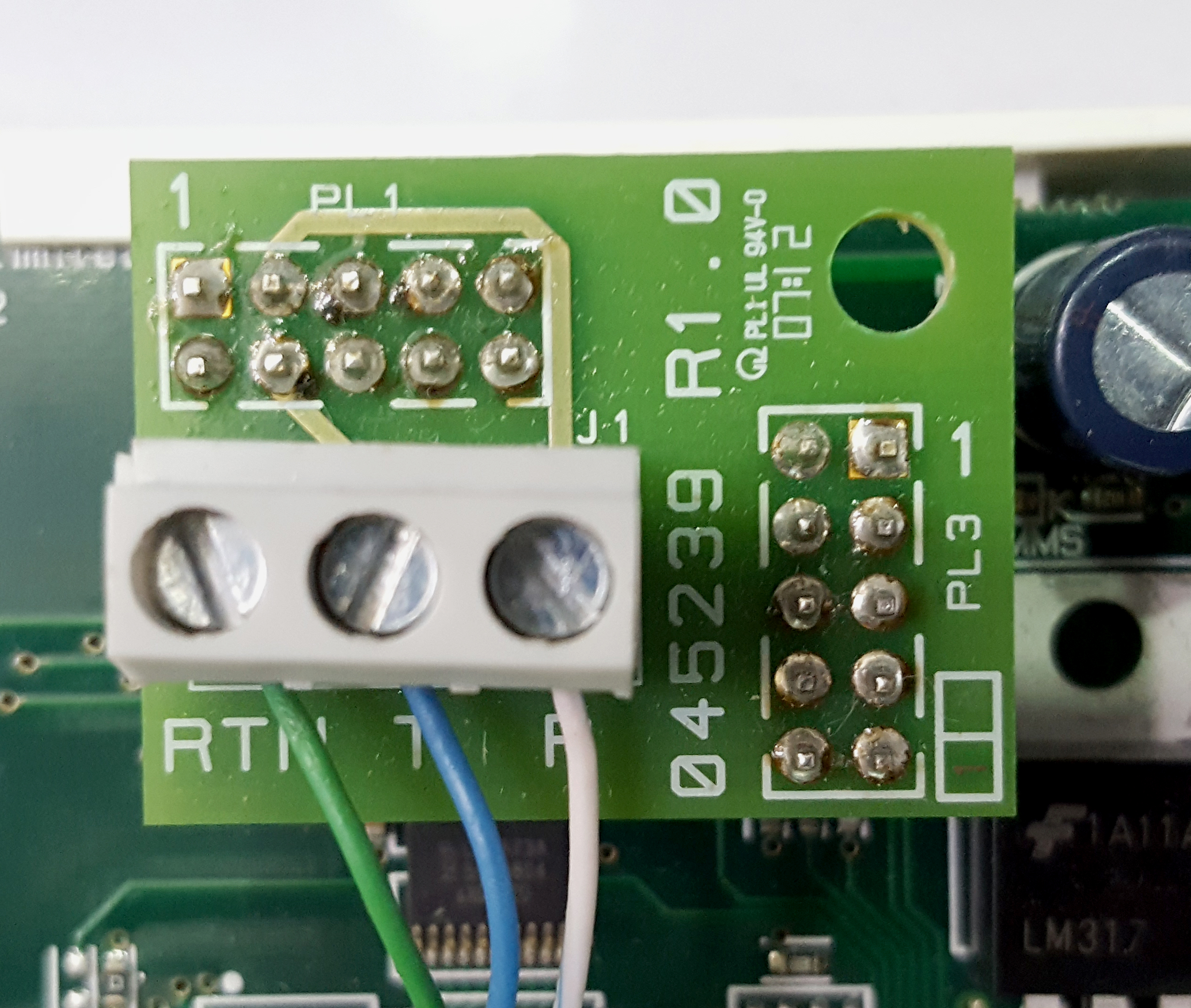

WebWay i-on 2 Interface Adaptor situated on the panel.

WebWay i-on 2 Interface Adaptor situated on the panel.

WebWay i-on 2 Interface Adaptor situated on the panel.

WebWay i-on 2 Interface Adaptor situated on the panel.

Panel Programming

  • To configure the panel, the SPT must be fully configured and wired to the panel and then rebooted. This causes the panel to query all devices connected and make available various menu options available in the Keypad and in the Web browser
  • Panel Communication on initial setup.
  • Access the panel as an Installer.
  • In the Installer menu navigate to the [Communications] menu.
  • In the [Communications] menu navigate to the [Contacts] menu.
  • In the [Contacts] menu find an unused [Recipient] and rename to 'Webwayone'.
  • Enter '0123456789' in the [Tel No 1] field.
  • Enter '127.0.0.1' in the [IP Address] field.
  • Navigate out of [Contacts].
  • Navigate to [ARC Reporting] and set [Call Mode] to 'Single'.
  • Set [Telecoms Priority] to 'Module: Ethernet 1'.
  • In menu [Recipients] clear out [Tel. Recipient 1] and [Tel. Recipient 2] and [IP Recipient 2].
  • Set [IP Recipient 1] with 'Webwayone'.
  • Navigate out of [Recipients].
  • Add the account number to [Account Numbers].
  • Set [Report Type] to 'SC SIA 3'.
  • In [CID/SIA Events] enable your choice of events to report.
  • Set [Restorals] to 'Enabled'.
  • Set [Unset Comms] to 'Enabled'.
  • Navigate to [IP Network (Own)] and [Module: Ethernet].
  • Set [IP Address] to '127.0.0.1'.
  • Set [IP Subnet Mask] to '255.255.255.0'.
  • Set [Gateway Address] to '127.0.0.1'.
  • Navigate out of [IP Network (Own)].
  • Navigate to [Downloading] menu.
  • In [Account] menu set [Name] and [Serial Number].
  • In [Downloading] set [Access Mode] to 'Unattended'.
  • In [IP Network] set [IP Address] to '127.0.0.1' and clear out all other IP addresses 2.
  • In [Remote Servicing] set [Enable Service] to 'Enabled'.
  • Exit Installer-Engineer mode.

UDL information for this item can be found here:
