Panel Connection - Active Panel Interface

Manufacturer	UTC
Model	ATS
Version	Advanced
Panel Firmware Minimum	All versions greater and equal to 026.026.0141-0143
Cable required?	Ribbon cable (05-5042)
ATS7090	Peripheral
ATS7090 Versions	Version less or equal to V1.02 - Needs SPT version less or equal to V2.06 Version greater or equal to V1.03 - Needs SPT version greater or equal to V2.07 Version V1.05 supports UDL on the latest Panel firmware
	None
Panel Profile	ATS-Adv-MI or ATSADVANCED
Technical Notes	When configuring the panel with a laptop, disconnect the ribbon cable between the Panel and WebWay before connecting the Laptop. When finished, you must disconnect the laptop and then reconnect the ribbon cable. ATS7090 Peripheral MUST be situated on AUX3.

Panel Connection

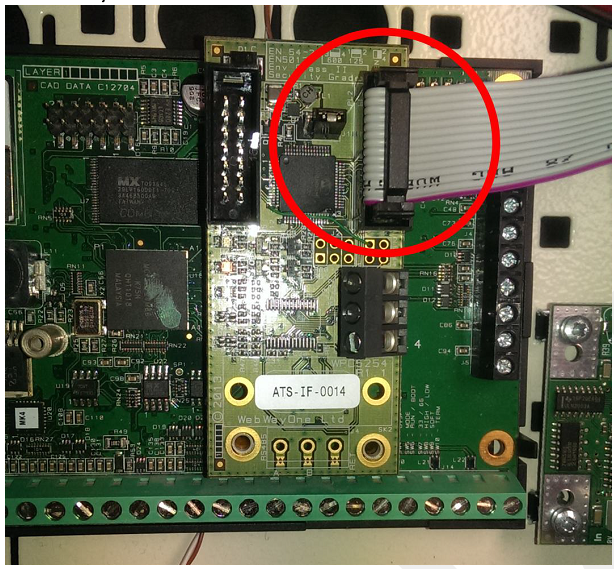

Cable Connection

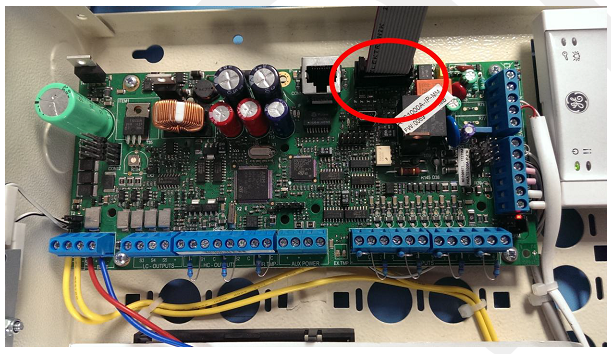

Panel Cable Connection

When a running panel and in Installer (Engineer) mode
Enter ‘Dialler’ menu [9]
Enter ‘CS’ menu [1]
Enter ‘CS 1’ menu [1]
Enter ‘Transm Path’ menu [2]
Select Option [‘TDA75XX’]
Enter ‘Protocol’ menu [3]
Select option [‘(X)SIA’]
Enter ‘Accounts’ menu
Select ‘Area n’ with [account numbers]
Enter [Mode] menu
Select option ‘Primary [CS]
Enter ‘Protocol opt’ menu [8]
Enter [(X)SIA] menu
Set ‘Area Modifier' to [ON]
Set ‘Name Chars’ to [30]
Set ‘Event Number’ to [3 digits]
Set ‘Subev codeing [to ‘Decimal]
Set [SIA Frequency] to [Bell]
Go back to [Dialler] menu level
Enter ‘Path Options’ menu [3]
Enter ‘PSTN’ menu [1]
Enter ‘Line Fault’ menu and select option [No]
Go back to ‘Path Options’ menu level.
Enter ‘IP’ menu [4] If present
Enter ‘Line Fault’ menu and select option [No]
Go back to 'Path options' menu level
Enter 'TDA75XX' menu [7]
Enter 'Line Fault' menu and select option 'If used'
Go Back to Installer Menu level and select Menu 8: Sys Opt > 7: Panel & AB Opts > 9: Remote Config - YES
Exit Installer (Engineer) mode
Please Note the below
May require full panel and SPT re-power
User Code : Menu 8:2:1 - Need Acc [YES]
The Area Account in the Alarm Events, This might need to be adjusted in the Panel's Settings in order to have a specific Area Number not a generic Account Number [Example: Area 1 - 0001, Area 2 - 0002, etc.....]

To enter engineer mode, access must be allowed via a setting in User mode.
After defaulting the panel, the panel will ask questions on power up.
User Code : Menu 8:2:1 - Need Acc [YES]
Eng Code : Menu 8: Sys Opt > 7: Panel & AB Opts > 9: Remote Config - YES
The Area Account in the Alarm Events, This might need to be adjusted in the Panel's Settings in order to have a specific Area Number not a generic Account Number [Example: Area 1 - 0001, Area 2 - 0002, etc.....]
Important Notice:
ATS Advanced panels running firmware versions 026.026.143 and 028.028.145 have been found to only allow ATS85xx, Remote Manager and the SPT to gain remote access once after a panel reboot. The previous version 024.024.128 still allows multiple ATS85xx, Remote Manager and SPT remote access to the panel.
ATTENTION: ATS Advanced panels running firmware versions 026.026.0141-0143 and 028.028.0145 have been found to only allow ATS85xx UDL applications, Remote Manager and the SPT to gain remote access once after a panel reboot. The previous version 024.024.0128 still allows multiple ATS85xx, Remote Manager and SPT remote access to the panel.

Manufacturing of this product is WEEE Compliant. - Further information is avalible in Document (1059353)
