Panel Connection - MCM

Manufacturer Interlogix International
Model Tecom
Version Challenger 8
Minimum Firmware Range 40.09.26
MCM Plug on required? MCM version less or equal to V1.05 - Needs SPT version less or equal to V2.06
MCM version greater or equal to V1.06 - Needs SPT version greater or equal to V2.07
MCM, Serial or Peripheral MCM
Panel Profile CHALLENGERDIGI
Panel Bus Connection None
Remote Manager Version V3.3.1.0
Technical Notes Please see below

Cable Connection

SPT Panel

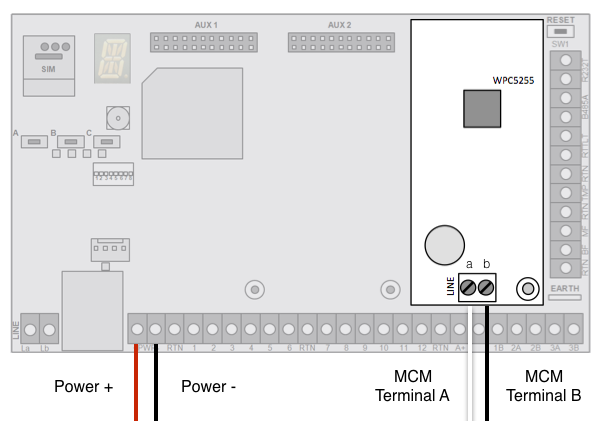

MCM plug-on module - Line a PSTN Line T (RJ12 Pin 4)
MCM plug-on module - Line b PSTN Line R (RJ12 Pin 3)

Images

SPT and MCM module

SPT and MCM module

SPT and MCM module

SPT and MCM module

Panel Programming

  • Menu 19 – Installer menu
  • Menu 9 – Communications menu
  • PBX: (not set)
  • Ph1 No: (any 9 digit number) [012345678]
  • Ph2 No: (not set)
  • Ser No: (not set)
  • CBack: (not set)
  • Comp: (not set)
  • System Account: (account number) {SPT account will do]
  • Area 1 Account (account number) [area 1 account number]
  • DTMF Format No: (4 - ContactID large)
  • Network Address: (0)
  • Computer Address: (0001)
  • O/C Areas: (not set)
  • STU ID: (0000)
  • Encryption Key: (0)
  • Number Of Rings: (1)
  • Number Of Calls Before Answer: (0)
  • Tone Dialling: (Yes)
  • Answer Machine Defeat: (No)

Troubleshooting

  • Ensure the MCM module is Version: V1.04
  • SPT Panel Profile : CHALLENGERDIGI
